Presta Valve Length Guide for Different Rim Depths
To estimate your Presta valve length, add 15–20 mm to your rim depth. A 50 mm rim gives a calculated range of 65–70 mm; a 60 mm rim gives 75–80 mm. Use this range as your starting point, then confirm the valve model and pump fit.
How to calculate Presta valve length
Estimated valve length = rim depth + 15–20 mm
Rim depth is the height of the rim section, not its internal width or wheel diameter. The additional 15–20 mm provides an allowance for inflation access. Valve measurement conventions, base shapes and pump heads vary, so check the usable stem after installation, including clearance above any retaining nut.
Rim depth and valve length chart
Rim depth | Calculated valve length |
25 mm | 40–45 mm |
30 mm | 45–50 mm |
38 mm | 53–58 mm |
40 mm | 55–60 mm |
45 mm | 60–65 mm |
50 mm | 65–70 mm |
60 mm | 75–80 mm |
65 mm | 80–85 mm |
80 mm | 95–100 mm |
90 mm | 105–110 mm |
These are calculated ranges, not a list of stocked sizes or a universal compatibility guarantee. For recessed valve openings or full disc wheels, follow the wheel maker’s access and adapter instructions.
Choose the right valve for your setup
Inner tube valves
An inner tube valve is attached to the tube and passes through the rim toward the hub. Choose a tube that fits your tire and wheel, then use rim depth + 15–20 mm to estimate the valve length. For TPU tubes, follow the tube maker’s valve-core and extender instructions.
Tubeless valves
Use the same rim depth + 15–20 mm calculation as an initial guide. A conventional tubeless Presta valve has a rubber base inside the tire cavity, seated against the tire-facing rim bed or tape; its retaining nut sits on the hub-facing side. The base must match the valve seat.
Check the valve hole, base shape, tire-insert compatibility and pump connection. Follow the valve maker’s tightening instructions. If air leaks around the valve, check the base, core and rim tape instead of simply tightening the nut further.
Presta valve extenders
An extender can help when the existing stem is too short. Extenders that relocate the valve core require a removable-core valve; other models are designed for fixed cores. Match the extender to your valve and follow its sealing instructions.
Use rim depth + 15–20 mm as the target range for the assembled valve system. Confirm its effective length after assemby; overlapping connections mean you should not assume that adding the two advertised lengths gives the usable result.

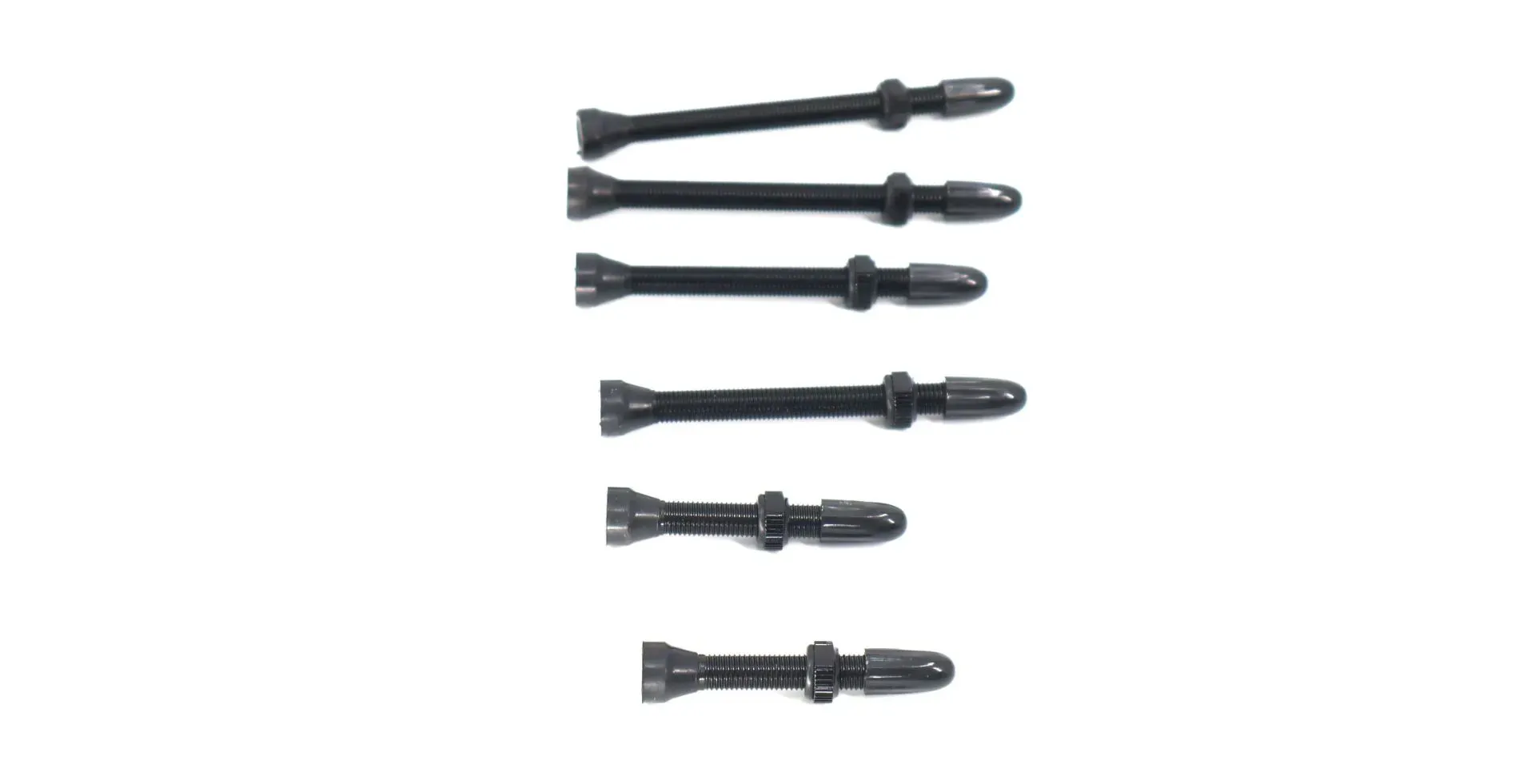

Black-bicycle-valve-stems-in-different-lengths-with-retaining-nuts-and-caps
Illustration only; use the chart to calculate length rather than estimating it from the photo.
Three checks before you ride
1. Calculate both wheels. Confirm the front and rear rim depths, then add 15–20 mm to each. Different rim depths may need different valve lengths.
2. Confirm the actual product. Check the valve’s stated measurement, base and retaining nut against the wheel and valve makers’ instructions.
3. Test inflation access. Check that your floor pump and ride pump connect securely without forcing the stem sideways. Confirm that the system holds air.
Common valve sizing mistakes
· Choosing a valve as short as the rim depth, leaving too little stem for inflation.
· Using rim width or wheel diameter instead of rim depth in the calculation.
· Treating a calculated range as a fit guarantee without checking the valve and pump.
· Assuming every extender works with every valve. Never enlarge a carbon rim’s valve hole to fit an incompatible stem.
Frequently asked questions
What valve length do I need for 50 mm rims?
Use 50 + 15–20 mm = 65–70 mm as the calculated valve-length range. Check the actual valve model and pump connection before buying.
What valve length do I need for 60 mm rims?
Use 60 + 15–20 mm = 75–80 mm as the calculated range. Confirm that the installed stem provides enough usable length above the rim and retaining nut.
What valve length do I need for 80 mm rims?
Use 80 + 15–20 mm = 95–100 mm as the calculated range. If using an extender, check the assembled system’s effective length and compatibility.
Can I use the same chart for inner tubes and tubeless valves?
Yes, rim depth + 15–20 mm is a useful starting calculation for both. Their bases and stated measurements can differ, so verify the specific product and its installed pump clearance.
What if no valve is sold within the calculated range?
Keep rim depth + 15–20 mm as your reference, then ask the wheel or valve maker to confirm an available compatible option. Do not assume a nearby nominal size will fit without checking the usable stem and pump.
Can I extend a valve with a non-removable core?
Yes, with an extender specifically designed for a fixed core. An extender that requires moving the core will not work with that valve type. Follow the manufacturer’s installation instructions.
Can a Presta valve be too long?
A longer valve may work, but unnecessary exposed length is more vulnerable to knocks. Use rim depth + 15–20 mm as the sizing reference, then check the complete setup. Extra length does not by itself fix a leaking tubeless seal.
Check the valve fit for your Light Travel wheels
Send your rim model, front and rear rim depths, tube or tubeless setup, proposed valve and pump model to support@lighttravelcycling.com so we can help you check the fit before you order.
